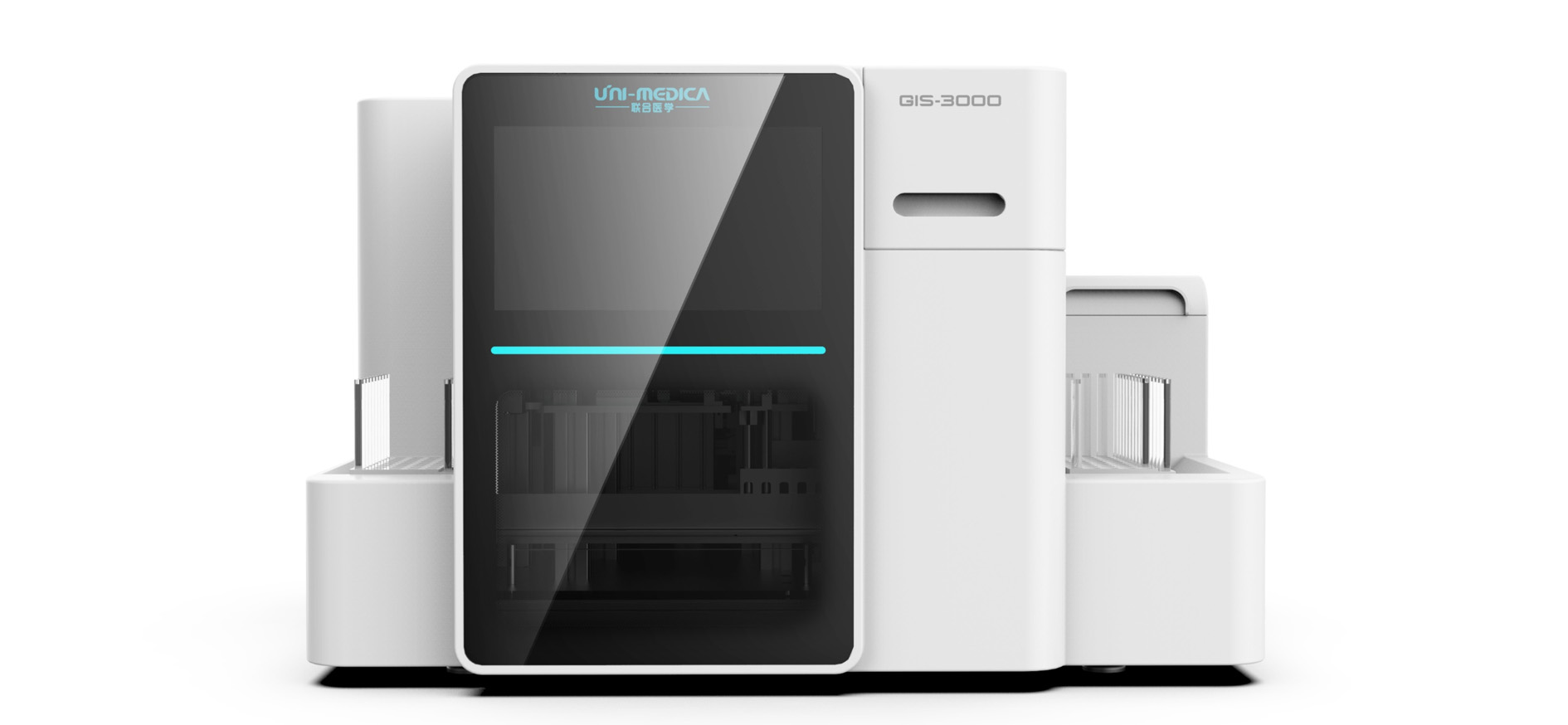

Automatic fluorescence dyeing intelligent analysis system (Gis-3100)

Automatic fluorescence dyeing intelligent analysis system (Gis-3100) is designed as an integrated machine, with the original tube on the machine and one click report. The system includes automatic sample injection and smear system, automatic staining system, automatic reading and artificial intelligence analysis system, multiple immunofluorescence staining solution, etc. Each component in vaginal secretions (including epithelial cells, white blood cells, clue cells, spores, mycelia, trichomonas, sperm cells, red blood cells, and streptococci) can be accurately identified in RGB images at a high speed, and microecological indicators, morphological indicators, and diagnostic results can be accurately and automatically obtained through the double threshold method.

Instrument characteristics

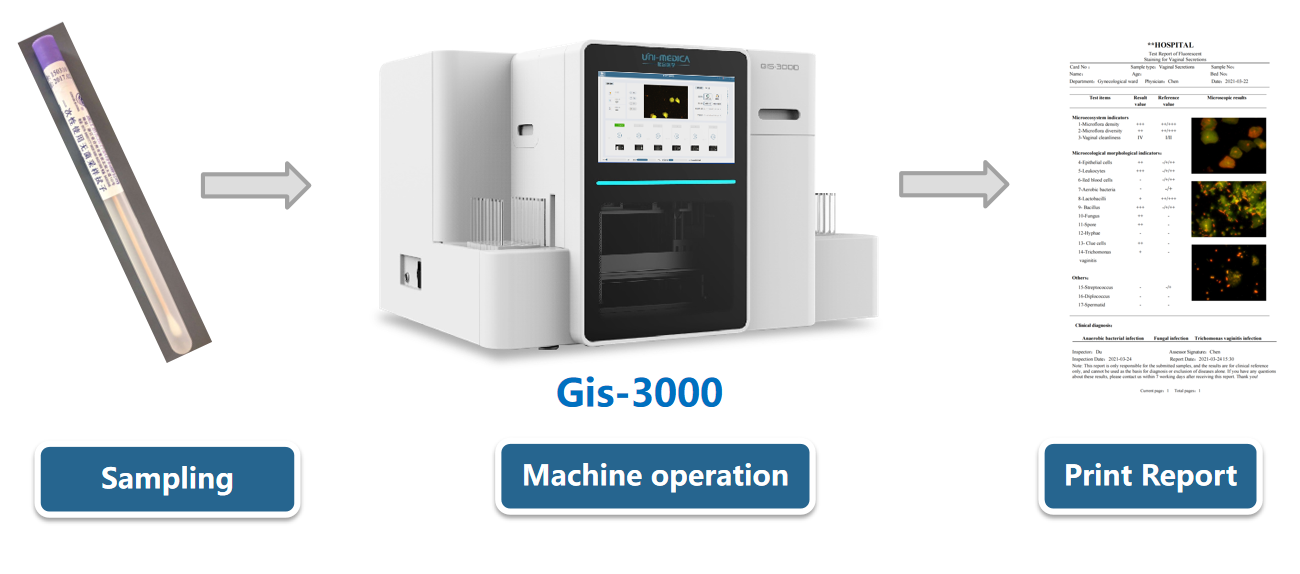

Sample in, result out

Automatic detection

Fluorescence morphology

Aerobic bacteria

Co-infection

Panoramic scan

Instrument parameters

Parameter

Contents

Instrument model

Gis-3100

Instrument function

Artificial intelligence technology, automatic reading and interpretation

Recognition ability

It can simultaneously identify epithelial cells, white blood cells, red blood cells, sperm cells, lactobacillus, gonococcus, streptococcus, fungi, spores, hyphae, clue cells, trichomonas and other tangible components, and can conduct artificial intelligence interpretation of bacterial density, bacterial diversity, cleanliness, etc

Operation interface

15.6-inch touch screen

Operation system

Win7, Win10

Scan speed

50-60 samples/hour

Scanning accuracy

0.303um/pixel, error ± 5%

Throughput

180 slides

Intelligent control

Running after intelligent identification of logo

Scan code

Support barcode and QR code, automatically enter sample information

Imaging modules

With blue and purple fluorescent modules

Size

1080mm*660mm*860mm

Net weight

130kg
