PRODUCT>Flurescence Quantitative PCR Platform>Total Solution of Novel Coronavirus 2019-nCoV Nucleic Acid Detection
Total solution of novel coronavirus 2019-nCoV Nucleic Acid Detection
Uni-medica provides a high-throughput and rapid solution for screening and detecting COVID-19 during medical observation and in suspected population. It includes:

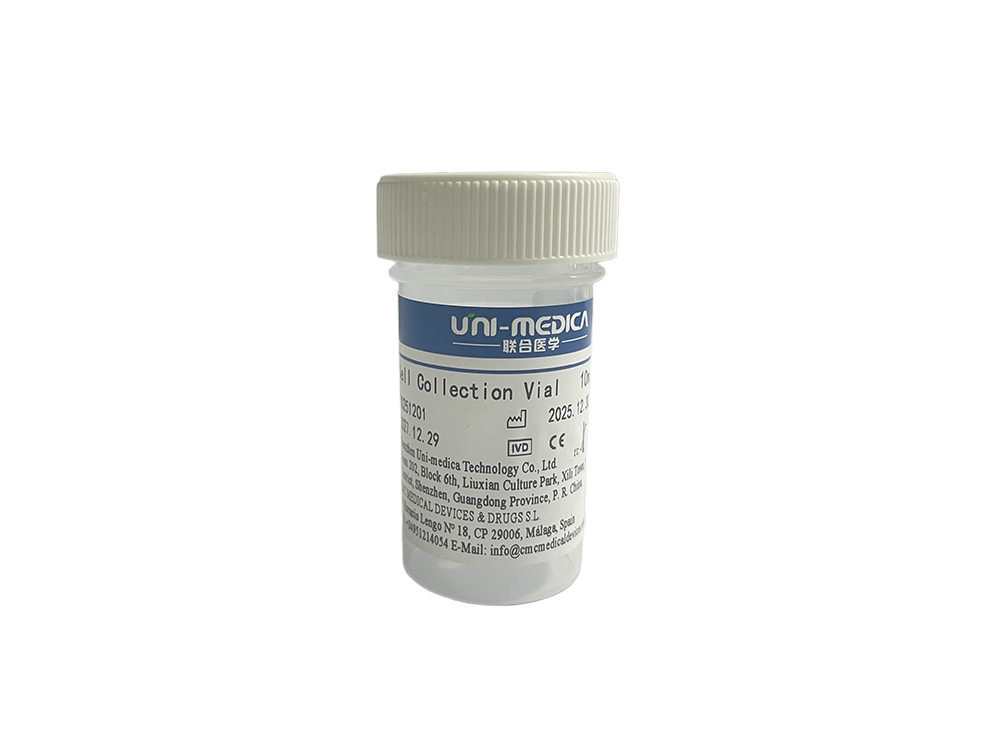

· Disposable Virus Sampling Kits.
· Automatic Nucleic Acid Extraction System( Extractor & Kits).
· Real Time PCR Amplification System.
Total Solution
Sampling
Nucleic Acid Extraction
Real Time PCR Amplification
Real Time Fluorescence Quantitative PCR System

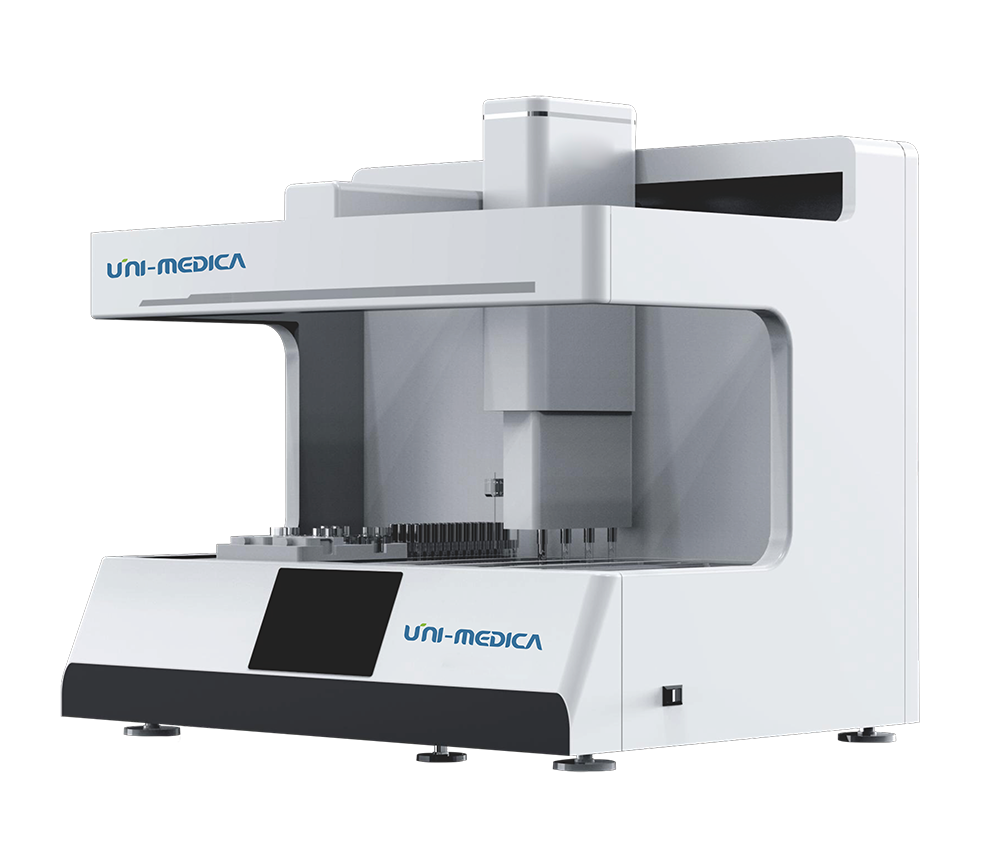

Nucleic Acid Extraction System (NFast 32A)
Parameter
Contents
Specimen
Saliva samples, sputum, nasopharyngeal swabs, oropharyngeal swabs, blood serum and plasma
Sample volume
30 ~ 1000ul
Throughput
1 ~ 32 samples
Recovery rate of magnetic beads
> 95%
Operation time
32 samples synchronous extraction in 10 minutes
Precision
CV < 3%
Consumables
96 deep-well plates + 32 magnetic bar sleeves
Mixing modes
Multi-speed adjustable
Thermal range
Room temperature ~ 120°C adjustable
Operation interface
Android operating system with 10-inch color LCD display and touch screen
Data storage
> 500 protocols
Program management
New, edit, delete and save; U disk import program
Low noise processing
Noise ≤ 50db
Preheating function
With preheating function, fast heating speed
Pollution control
HEPA filter system and UV lamp
Operational environment
Temperature 5-40°C; Humidity ≤ 80%
Dimension
Dimension: 400mm*400mm*450mm (fit in biosafety cabinet); Weight: 35kg
Others
Built-in lighting: Scan code operation can be set up (optional); USB interface; Can expand the Ethernet
Nucleic Acid Extraction System (NFast 96)
Parameter
Contents
Specimen
Saliva samples, sputum, nasopharyngeal swabs, oropharyngeal swabs, blood serum and plasma
Sample volume
30 ~ 1000ul
Throughput
1 ~ 96 samples
Recovery rate of magnetic beads
> 95%
Operation time
96 samples synchronous extraction in 13 minutes
Plate position
8
Precision
CV < 3%
Consumables
96 deep-well plates + 96 magnetic bar sleeves
Mixing modes
Multi-speed adjustable
Thermal range
Room temperature ~ 120°C adjustable
Operation interface
Android operating system with 10-inch color LCD display and touch screen
Data storage
> 500 protocols
Program management
New, edit, delete and save; U disk import program
Low noise processing
Noise ≤ 50db
Preheating function
With preheating function, fast heating speed
Pollution control
HEPA filter system and UV lamp
Operational environment
Temperature 5-40°C; Humidity ≤ 80%
Dimension
Dimension: 545mm*610mm*510mm (fit in biosafety cabinet); Weight: 50kg
Others
Built-in lighting: Scan code operation can be set up (optional); USB interface; Can expand the Ethernet
Real Time Fluorescence Quantitative PCR System
Performance Parameter
1.Flux: 1~96 samples;
2.5 colors (can be upgraded to 8-color fluorescence);
3.6-zone independent temperature control + edge thermal compensation technology;
4.High sensitivity: low copy samples can be effectively detected;

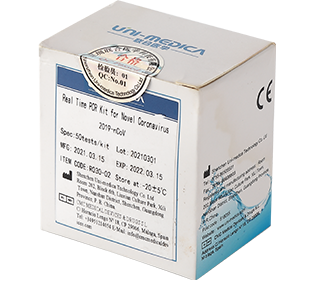

Real Time PCR Kit for Novel Coronavirus 2019-nCoV
According to《COVID-19 Diagnosis and Treatment Program (Trial Eighth Edition)》, when the novel Coronavirus nucleic acid is tested positive by real-time fluorescent RT-PCR, it was declared a confirmed case.The kit was performed using a fluorescent RCR assay to detect the ORF1ab and N gene of Novel Coronavirus 2019-nCoV and contained internal control.
Performance Parameter
High Accuracy: the product has been approved by the state drug administration and obtained Chinese FDA certificate (NMPA) and CE certificate.
High Sensitivity: limit of detection is 200 copies/mL
Rapid reaction time: 50 minutes with a rapid PCR system
Internal Control:The whole process is monitored by internal control
High Automation: High-throughput automated detection, improve screening efficiency

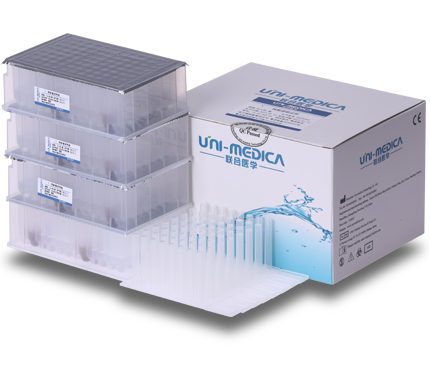

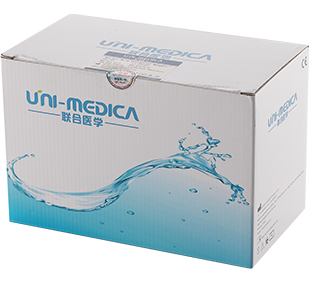

NUCLEIC ACID EXTRACTION REAGENT
Compatible with different brands of Nucleic Acid Extractors
Performance Parameter
It is simple and quick to obtain ultra-pure genomic nucleic acid within 10 ~ 13 minutes
Recovery rate of magnetic beads: > 95%
Capacity of Nucleic Acid：> 90%
Product List
Products
Specs
ITEM No.
Description
Real Time PCR Kit for Novel Coronavirus 2019-nCoV
50 tests/kit
R030-02
Analytes: ORF1ab, N gene and Internal control
Real Time PCR Kit for Novel Coronavirus 2019-nCoV (ORF1ab, N, E)
50 tests/kit
16.01.003.01
Analytes: ORF1ab, N, E gene and Internal control
Freeze-Dried Real Time PCR Kit for Novel Coronavirus 2019-nCoV
48 tests/kit
16.01.001
Analytes: ORF1ab, N gene and Internal control
Multiplex Real Time PCR Kit for Novel Coronavirus 2019-nCoV /Influenza A/Influenza B
50 tests/kit
16.01.002.03
Analytes: Novel coronavirus 2019-nCoV (ORF1ab, N). Influenza A, Influenza B and Internal control
Nucleic Acid Extraction Reagent
64 tests/kit，96 tests/kit，100 tests/kit，300 tests/kit
R025-02
Saliva samples, Sputum, Nasopharyngeal swabs, Oropharyngeal swabs, Bronchoalveolar lavage fluid(BALF), Blood serum and plasma
Sample Release Reagent
100 tests/kit
16.03.001.01
Lysing the virus samples and Release the nucleic acid
Disposable Virus Sampling Tube
50 pcs/kit
16.04.001 16.04.002
PP fiber swabs and Virus sampling tube
Automatic Nucleic Acid Extractor
NFAST 32A
16.09.002
Flux: 1-32 samples Extraction time: 10 minutes
Automatic Nucleic Acid Extractor
NFAST 96
16.09.001
Flux: 1-96 samples Extraction time. 13 minutes
Real Time Fluorescence Quantitative PCR System
MA6000
17.01.001.01
Flux: 1-96 samples
List of other products
Fluorescent PCR reagent
Real Time PCR Kit for Novel Coronavirus 2019-nCoV(ORF1ab,N)
50T
16.01.001.01
ORF1ab, N
Real Time PCR Kit for Respiratory Pathogens
12T
/
RSVB,NL63,229E,PIV1,etc
Other testing reagents
Multiple Cytokin Detection Kit(Multiple microspheres with flow fluorescence)
50T,100T
/
IL-1β、IL-2、IL-4、IL-5、IL-6、IL-8、IL-10、IL-12p70、IL-17、IFN-γ、IFN-α、TNF-α
